12AWG 300V Silicone Wires Electrical Wires FT2 UL3254 Nickel Plated

Brand Name : Mysun

Model Number : UL3254

Certification : ROHS/CCC/VDE/CCC/ISO9001:2008

Place of Origin : Guangdong，China

MOQ : 3050meters

Price : 0.06~0.48USD per M

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500000 Meters per Day

Delivery Time : 7-15 working day

Packaging Details : Standard packge: cardboard box Accept custom-made.

Conductor Type : Stranded

Color : White

Usage : Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc

Rated Voltage : 300v

Rated Temperature : 250C

Size : 12AWG

Conductor : Nickel -plated wires

Standard : UL758

Insulation : Silicone rebber + fibber glass

Type : insulated

Max.Cond Resistance : 5.64 Ω/KM

Contact Now

Silicone wires electrial wres 12AWG 300V FT2 UL3254 Nickel -plated wires

UL 3254 Specifications:

Nominal voltage:300V

Temperature range: 250℃

Standard: UL3254

Insulation: Silicone Rubber + Fibber glass

Conductor: Tinner copper

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.3 0.93 2.16 361 610/2000
28 7/0.12 0.36 2.22 227
26 7/0.16 0.48 2.34 143
24 7/0.20 0.6 2.46 89.3
22 7/0.254 0.76 2.62 56.4 305/1000
20 7/0.31 0.93 2.79 35.2
18 7/0.39 1.17 3.03 22.2
16 7/0.49 1.47 3.33 14
14 41/0.254 1.89 3.75 8.78
12 19/0.47 2.36 4.22 5.53

Our Product

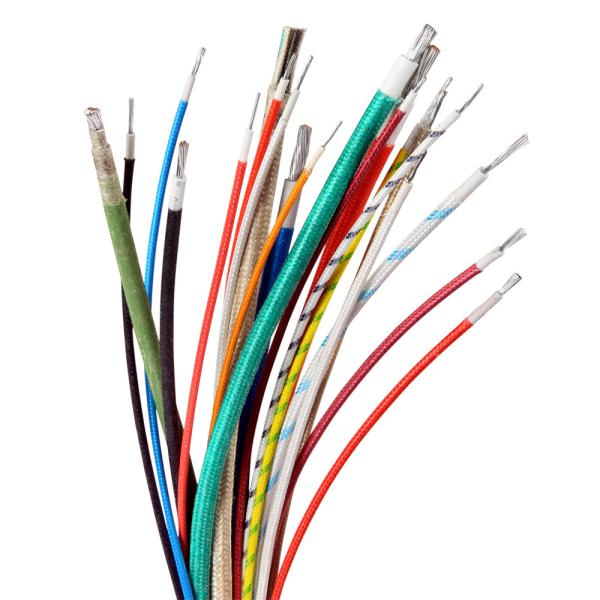

12AWG 300V Silicone Wires Electrical Wires FT2 UL3254 Nickel Plated

Product Description

12AWG 300V Silicone Wires Electrical Wires FT2 UL3254 Nickel Plated

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
